Defi Sports LED Display F is a multi-information display with a lap timer

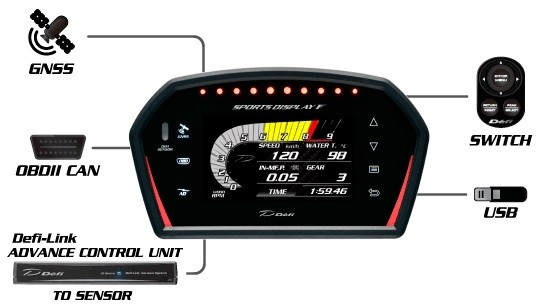

DSDF displays data obetained from ADVANCE system, OBDII connector, and GNSS (Global Navigation Satellite System including GPS). In addition, driving data can be recorded, replayed, and analyzed by connecting a USB flash drive (commercially available).

DF15902
Defi Sports Display F ADVANCE Control Unit Set
（Set of DF15901, ADVANCE Control Unit, and sensors)

4.2inches touch panel TFT color LCD, a dim sensor, and a low reflection glass enhances the operatability and the readability.


The display pattern can be selected from 3 patterns. (Patterns will be added later.)

Data obtained from 3 different devices can be displayed in one screen.
-Location information from GNSS
-ISO CAN data from OBDII
-Sensor information by linking with the ADVANCE system

Sequential indicators of 10 red LEDs

Driving data can be recorded, replayed, and analyzed by using a commercially available USB flash drive. The system can be updated too.
*A PC wired to the internet is necessary to analyze data and update the system.

A separate switch unit which is easy to push by fingers with racing gloves is included in the package.

Mounting brackets are included and the paper templates are attached.

Warning

• Defi-Link ADVANCE Control Unit and sensors are necessary to be installed to obtain senser data from ADVANCE System. A GNSS antenna and OBDII connector is included in the package.
• A commercially available USB flash drive is necessary to record, replay, and analyze driving data.
• Defi Sports Display F is expressed as DSDF.
• The images may differ from real products due to the photography conditions and improvement of specifications.
• The specifications may be changed without notice in order to improve performance.
• Please refer to the manual for details.
